ADUC814BRUZ
Manufacturer
Analog Devices
Description

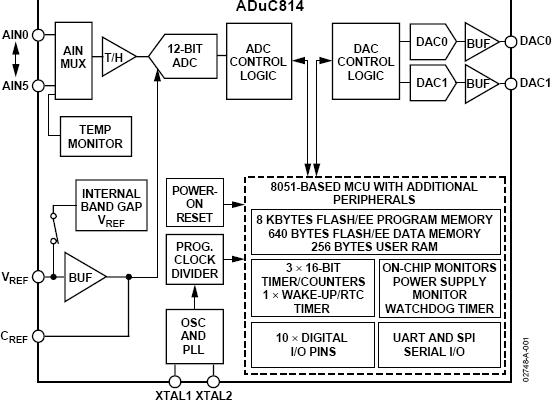

Precision Analog Microcontroller: 1.3MIPS 8052 MCU + 8kB Flash + 6-Ch 12-Bit ADC + Dual 12-Bit DAC
Product Attributes
Type
Access Time
Case/Package
Contact Plating
Core Architecture
Data Bus Width
Frequency
Height
Interface
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Frequency
Max Operating Temperature
Max Supply Voltage
Memory Size
Memory Type
Min Operating Temperature
Min Supply Voltage
Mount
Number of ADC Channels
Number of I2C Channels
Number of I/Os
Number of Pins
Number of Programmable I/O
Number of SPI Channels
Number of Timers/Counters
Number of UART Channels
Operating Supply Voltage
Oscillator Type
Packaging
Peripherals
RAM Size
REACH SVHC
Resolution
RoHS
Sampling Rate
Schedule B
Width
Description
16.8 µs
TSSOP
Tin
8052
8 b
16.78 MHz
1.05 mm
I2C, SPI, UART, USART
9.8 mm
Production (Last Updated: 2 years ago)
PRODUCTION (Last Updated: 2 years ago)
16.78 MHz
125 °C
5.5 V
8 kB
FLASH
-40 °C
2.7 V
Surface Mount
6
1
17
28
11
1
3
1
5 V
Internal
Bulk
POR, PWM, Temp Sensor, WDT
256 B
No
1.5 B
Compliant
247 ksps
8542310000, 8542310000|8542310000|8542310000|8542310000|8542310000
4.5 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹1739.12
Total Price
₹1739.12
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹1739.12
₹1739.12
10
₹1343.00
₹13429.99
25
₹1380.20
₹34505.05
50
₹1198.91
₹59945.49
100
₹1152.44
₹115243.55
