ADUM1401ARWZ
Manufacturer
Analog Devices
Description

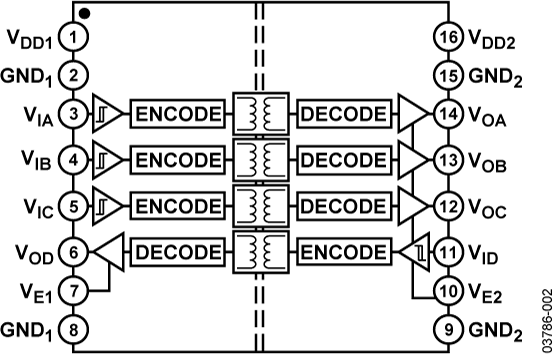

Quad-Channel Digital Isolator (3/1 Channel Directionality)
Datasheet
DownloadProduct Attributes
Type
Case/Package
Channel Type
Contact Plating
Data Rate
Depth
Isolated Power
Isolation Voltage
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Input Current
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Nominal Supply Current
Number of Channels
Number of Input Lines
Number of Pins
Operating Supply Current
Operating Supply Voltage
Output Current
Packaging
Propagation Delay
Pulse Width Distortion (PWD)
REACH SVHC
Rise Time
RoHS
Schedule B
Turn-On Delay Time
Type
Width
Description
SOIC
Unidirectional
Tin
1 Mbps
2.35 mm
No
2.5 kV
10.5 mm
Production (Last Updated: 2 years ago)
PRODUCTION (Last Updated: 2 years ago)
10 µA
105 °C
5.5 V
-40 °C
2.7 V
11 mA
4
3
16
11 mA
5 V
22 mA
Bulk
100 ns
40 ns
No
3 ns
Compliant
8543709655, 8543709655|8543709655|8543709655|8543709655|8543709655
32 ns
General Purpose
7.6 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹679.35
Total Price
₹679.35
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹679.35
₹679.35
10
₹426.81
₹4268.07
25
₹426.81
₹10670.19
50
₹372.54
₹18627.17
100
₹399.97
₹39997.11
500
₹399.96
₹199981.97
1000
₹373.30
₹373299.50
