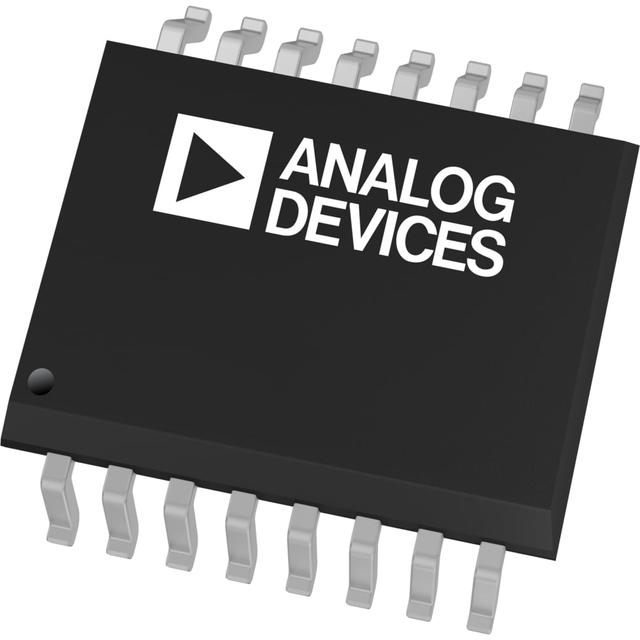

ADUM4160BRWZ
Manufacturer
Analog Devices
Description
ANALOG DEVICES - ADUM4160BRWZ - Digital Isolator, 2 Channels, 3.1 V, 5.5 V, WSOIC, 16 Pins, 12 Mbps
Datasheet
DownloadProduct Attributes
Type
Technology
Type
Isolated Power
Number of Channels
Inputs - Side 1/Side 2
Channel Type
Isolation Voltage
Common Mode Transient Immunity (Min)
Data Rate
Propagation Delay tpLH / tpHL (Max)
Rise / Fall Time (Typ)
Voltage
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
Magnetic Coupling
USB
No
1
1/1
Bidirectional
5000Vrms
25kV/µs
12Mbps
70ns, 70ns
20ns, 20ns (Max)
3.1V ~ 5.5V
-40°C ~ 105°C
Surface Mount
16-SOIC (0.295", 7.50mm Width)
16-SOIC
₹2171.74
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹2171.74
₹2171.74
10
₹1704.00
₹17039.99
25
₹1566.36
₹39158.94
50
₹1566.36
₹78317.89
100
₹1456.74
₹145674.37
500
₹1429.98
₹714991.96
1000
₹1357.33
₹1357334.83
Product Attributes
Type
Technology
Type
Isolated Power
Number of Channels
Inputs - Side 1/Side 2
Channel Type
Isolation Voltage
Common Mode Transient Immunity (Min)
Data Rate
Propagation Delay tpLH / tpHL (Max)
Rise / Fall Time (Typ)
Voltage
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
Magnetic Coupling
USB
No
1
1/1
Bidirectional
5000Vrms
25kV/µs
12Mbps
70ns, 70ns
20ns, 20ns (Max)
3.1V ~ 5.5V
-40°C ~ 105°C
Surface Mount
16-SOIC (0.295", 7.50mm Width)
16-SOIC
