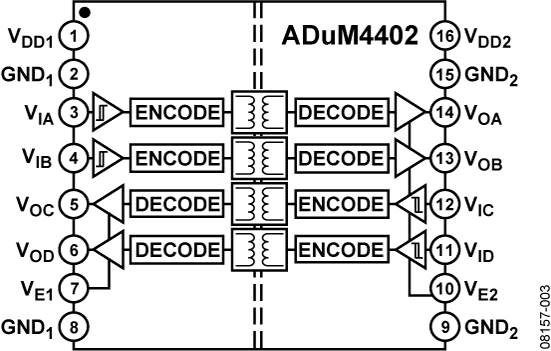

ADUM4402BRWZ
Manufacturer
Analog Devices
Description
DGTL ISO 5KV 4CH GEN PURP 16SOIC / 5 kV RMS Quad-Channel Digital Isolators
Product Attributes
Type
Case/Package
Channel Type
Contact Plating
Data Rate
Depth
Isolated Power
Isolation Voltage
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Input Current
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Nominal Supply Current
Number of Channels
Number of Pins
Packaging
Propagation Delay
Pulse Width Distortion (PWD)
REACH SVHC
Rise Time
RoHS
Schedule B
Type
Width
Description
SOIC
Unidirectional
Tin
90 Mbps
2.35 mm
No
5 kV
Contains Lead
10.5 mm
Production (Last Updated: 2 years ago)
PRODUCTION (Last Updated: 2 years ago)
10 µA
105 °C
5.5 V
-40 °C
2.7 V
830 µA
4
16
Cut Tape
32 ns
3 ns
No
3 ns
Compliant
8543709655, 8543709655|8543709655|8543709655|8543709655|8543709655
General Purpose
7.6 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹902.76
Total Price
₹902.76
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹902.76
₹902.76
10
₹627.14
₹6271.43
25
₹627.12
₹15678.12
50
₹541.62
₹27081.11
100
₹540.56
₹54055.72
500
₹541.08
₹270541.79
1000
₹541.08
₹541084.47
