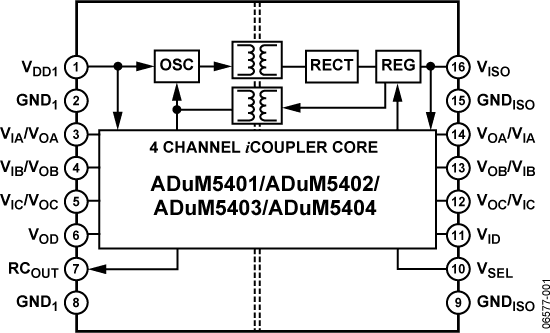

ADUM5401ARWZ
Manufacturer
Analog Devices
Description
ANALOG DEVICES ADUM5401ARWZ Digital Isolator, Quad, 4, 100 ns, 4.5 V, 5.5 V, SOIC, 16 Pins
Product Attributes
Type
Ambient Temperature Range High
Case/Package
Channel Type
Contact Plating
Data Rate
Depth
Height
Isolated Power
Isolation Voltage
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Input Current
Max Operating Temperature
Max Output Current
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Nominal Supply Current
Number of Channels
Number of Pins
Power Dissipation
Propagation Delay
Pulse Width Distortion (PWD)
Radiation Hardening
REACH SVHC
Rise Time
RoHS
Schedule B
Type
Width
Description
105 °C
SOIC
Unidirectional
Tin
25 Mbps
2.35 mm
2.65 mm
Yes
2.5 kV
Contains Lead
10.5 mm
Production (Last Updated: 2 years ago)
PRODUCTION (Last Updated: 2 years ago)
20 µA
105 °C
100 mA
5.5 V
-40 °C
3 V
19 mA
4
16
500 mW
100 ns
40 ns
No
No
2.5 ns
Compliant
8543709655, 8543709655|8543709655|8543709655|8543709655|8543709655
General Purpose
7.6 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹1384.51
Total Price
₹1384.51
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹1384.51
₹1384.51
10
₹1068.39
₹10683.92
25
₹1130.13
₹28253.34
50
₹930.14
₹46506.94
100
₹853.95
₹85395.20
500
₹853.95
₹426973.33
1000
₹853.94
₹853944.90
