ADUM6212CRSZ
Manufacturer
Analog Devices
Description

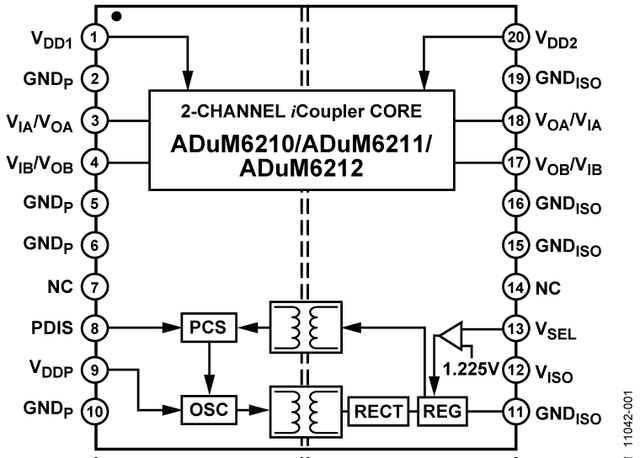

Dual-Channel Isolators with Integrated DC-to-DC Converter (0/2 Channel Directionality)
Product Attributes
Type
Case/Package
Channel Type
Data Rate
Depth
Efficiency
Isolated Power
Isolation Voltage
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Input Current
Max Input Voltage
Max Operating Temperature
Max Output Current
Max Supply Voltage
Min Input Voltage
Min Operating Temperature
Min Supply Voltage
Nominal Supply Current
Number of Channels
Number of Outputs
Number of Pins
Output Type
Output Voltage
Propagation Delay
Pulse Width Distortion (PWD)
REACH SVHC
Rise Time
RoHS
Switching Frequency
Turn-On Delay Time
Type
Width
Description
SSOP
Unidirectional
100 Mbps
1.85 mm
29 %
Yes
3.75 kV
Contains Lead
7.5 mm
Production (Last Updated: 2 years ago)
PRODUCTION (Last Updated: 2 years ago)
25 mA
5 V
105 °C
10 mA
5.5 V
3.3 V
-40 °C
3 V
4.8 mA
2
2
20
Adjustable
5.25 V
24 ns
2 ns
No
3 ns
Compliant
125 MHz
15 ns
General Purpose
5.6 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹1195.38
Total Price
₹1195.38
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹1195.38
₹1195.38
10
₹828.47
₹8284.74
25
₹828.56
₹20714.06
50
₹767.18
₹38358.94
100
₹766.11
₹76611.13
500
₹767.18
₹383587.62
1000
₹767.18
₹767175.23
