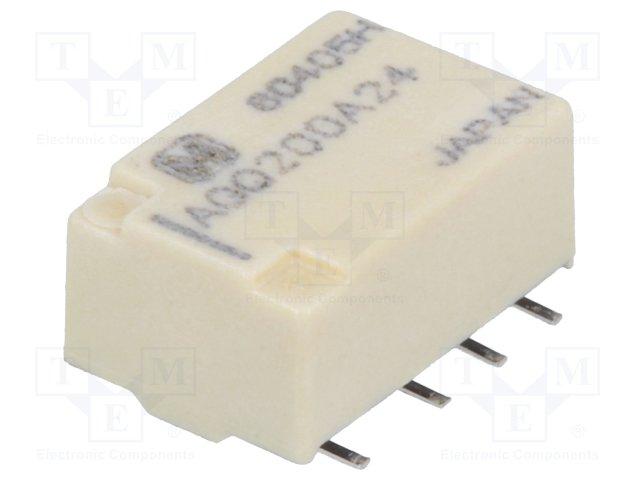

AGQ200A24
Manufacturer
Panasonic
Description
Electromechanical Relay 24VDC 2.504KOhm 2A DPDT (10.6x8.4x5.4)mm SMD General Purpose Relay
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Coil Current
Coil Power
Coil Resistance
Coil Type
Coil Voltage (DC)
Contact Current Rating
Contact Material
Contact Plating
Contact Resistance
Contact Voltage Rating (AC)
Current Rating
Depth
Electrical Life
Height
Insulation Resistance
Lead Free
Length
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Poles
Number of Terminals
Operate Time
Pitch
Power Consumption
Power Rating
Radiation Hardening
Ratings
REACH SVHC
Relay Type
Release Time
Response Time
RoHS
Schedule B
Sealable
Switching Current
Termination
Test Voltage
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Weight
Width
Description
85 °C
10 mA
230 mW
2.504 kΩ
Non-Latching
18 V
2 A
Gold, Silver
Gold
100 mΩ
125 V
2 A
8.4 mm
100 kcycles
5.4 mm
1 GΩ
Lead Free
10.6 mm
Production (Last Updated: 7 months ago)
2 A
85 °C
125 V
110 V
-40 °C
Surface Mount
2
8
2
8
4 ms
2.2 mm
230 mW
230 mW
No
IP67
Yes
Telecom
4 ms
4 ms
Compliant
8536490050|8536490050|8536490050|8536490050|8536490050
WATER PROOF
2 A
Gull Wing
1.5 kV
DPDT
125 V
110 V
1 g
10.6 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹232.90
Total Price
₹232.90
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹232.90
₹232.90
10
₹232.81
₹2328.13
25
₹232.83
₹5820.76
50
₹224.34
₹11217.17
100
₹220.10
₹22010.01
