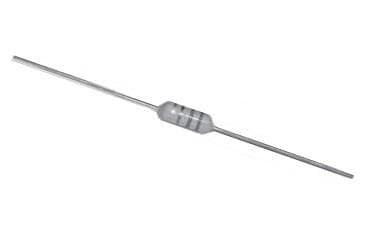

AIAP-01-471K-T

Manufacturer

Abracon

Description

Inductor Power Unshielded Wirewound 470uH 10% 1KHz 0.24A 3.4Ohm DCR AXL T/R

Datasheet

download datasheetDownload

Product Attributes

Type

Case/Package

Composition

Core Material

Current Rating

DC Resistance (DCR)

Height

Inductance

Lead/Base Style

Length

Lifecycle Status

Max DC Current

Max Operating Temperature

Min Operating Temperature

Mount

Radiation Hardening

RoHS

Schedule B

Self Resonant Frequency

Shielding

Termination

Test Frequency

Tolerance

Description

Axial

Wirewound

Ferrite

240 mA

3.4 Ω

9.14 mm

470 µH

Axial

3.3 mm

Production (Last Updated: 2 years ago)

240 mA

105 °C

-40 °C

Through Hole

No

Compliant

8504100000, 8504500000|8504500000|8504500000|8504500000|8504500000

1.4 MHz

Unshielded

Axial

1 kHz

10 %

In Stock


Quantity

MOQ : 3

Minimum Qty : 3

decrement quantity
increment quantity

Per Unit Price

₹35.93

Total Price

₹107.79


delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

108.67

108.67

10

26.95

269.47

25

26.93

673.23

50

24.68

1234.25

100

21.73

2172.53

500

21.06

10527.79

1000

18.55

18545.55
