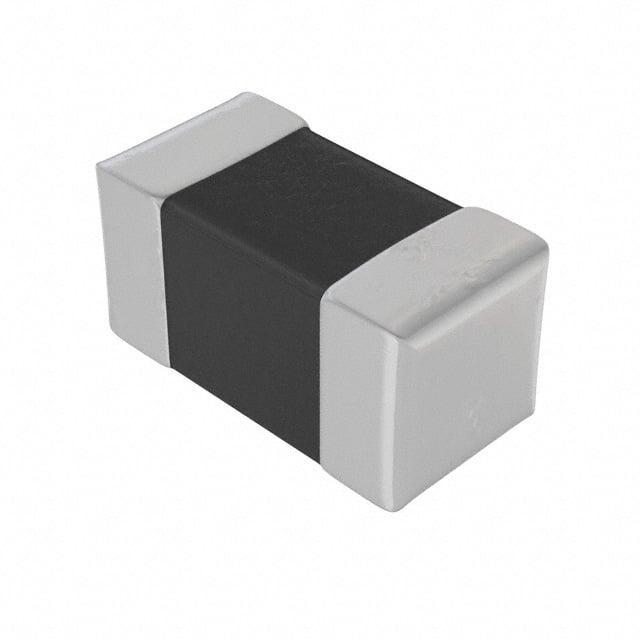

AIML-0402-2R2K-T
Manufacturer
Abracon
Description
2.2 H Shielded Multilayer Inductor 10 mA 1.75Ohm Max 0402 (1005 Metric)
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Multilayer
Ferrite
2.2 µH
±10%
10 mA
Shielded
1.75Ohm Max
20 @ 10MHz
28MHz
-55°C ~ 125°C
10 MHz
Surface Mount
0402 (1005 Metric)
0402 (1005 Metric)
0.039" L x 0.020" W (1.00mm x 0.50mm)
0.026" (0.65mm)
₹13.50
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹10.32
₹103.21
25
₹6.46
₹161.50
50
₹6.46
₹323.00
100
₹5.33
₹532.53
500
₹5.32
₹2660.82
1000
₹4.38
₹4376.44
Product Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Multilayer
Ferrite
2.2 µH
±10%
10 mA
Shielded
1.75Ohm Max
20 @ 10MHz
28MHz
-55°C ~ 125°C
10 MHz
Surface Mount
0402 (1005 Metric)
0402 (1005 Metric)
0.039" L x 0.020" W (1.00mm x 0.50mm)
0.026" (0.65mm)
