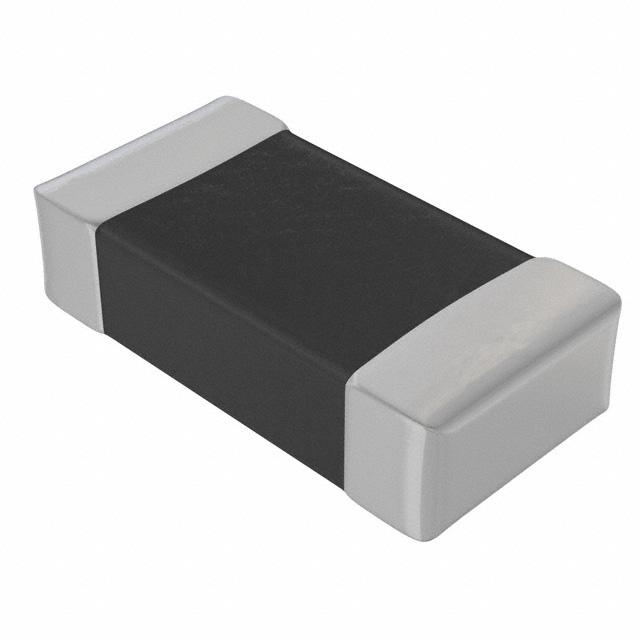

AIML-1206-100K-T
Manufacturer
Abracon
Description
10 H Shielded Multilayer Inductor 25 mA 800mOhm Max 1206 (3216 Metric)
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Multilayer
Ferrite
10 µH
±10%
25 mA
Shielded
800mOhm Max
55 @ 2MHz
28MHz
-55°C ~ 125°C
2 MHz
Surface Mount
1206 (3216 Metric)
1206
0.126" L x 0.063" W (3.20mm x 1.60mm)
0.055" (1.40mm)
₹26.99
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹22.42
₹224.18
25
₹22.47
₹561.81
50
₹22.45
₹1122.70
100
₹18.46
₹1845.56
500
₹18.46
₹9227.77
1000
₹15.18
₹15178.93
Product Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Multilayer
Ferrite
10 µH
±10%
25 mA
Shielded
800mOhm Max
55 @ 2MHz
28MHz
-55°C ~ 125°C
2 MHz
Surface Mount
1206 (3216 Metric)
1206
0.126" L x 0.063" W (3.20mm x 1.60mm)
0.055" (1.40mm)
