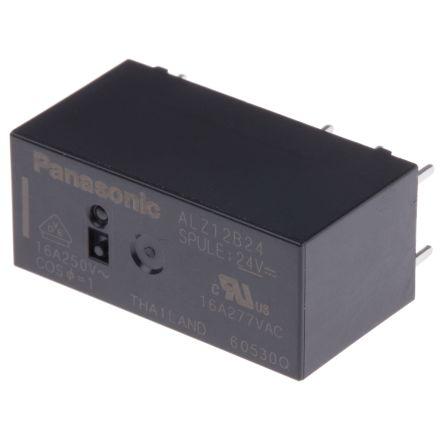

ALZ12B24
Manufacturer
Panasonic
Description
24V AgSnO2 16A SPDT (1 Form C) DIP, 12.5x28.8mm Power Relays ROHS
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Case/Package
Coil Current
Coil Power
Coil Resistance
Coil Type
Coil Voltage (DC)
Contact Current Rating
Contact Material
Current Rating
Depth
Height
Lead Free
Length
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Operate Time
Packaging
Power Consumption
Power Rating
REACH SVHC
Relay Type
Release Time
RoHS
Switching Current
Termination
Throw Configuration
Voltage Rating (AC)
Weight
Width
Description
85 °C
DIP
16.7 mA
400 mW
1.44 kΩ
Non-Latching
24 V
16 A
Silver, Tin
16 A
12.5 mm
16 mm
Lead Free
28.8 mm
16 A
85 °C
440 V
-40 °C
PCB, Through Hole
1
8
15 ms
Bulk
400 mW
400 mW
Unknown
General Purpose
5 ms
Compliant
16 A
PC Pin
SPDT
440 V
12 g
12.5 mm
₹257.12
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹257.12
₹257.12
10
₹223.90
₹2239.01
25
₹223.88
₹5597.06
50
₹230.01
₹11500.41
100
₹219.67
₹21967.32
