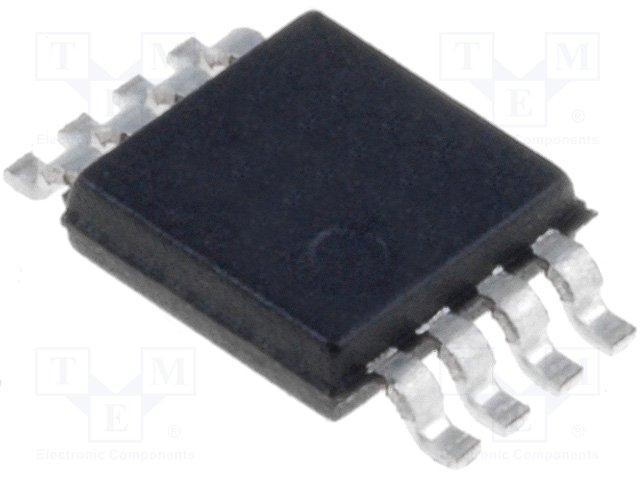

AP2401MP-13
Manufacturer
Diodes Inc.
Description
Single Channel Current-limited Load Switch With Output Transient Discharge, -40 to 85C, Rohs
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Fault Protection
Height
Height - Seated (Max)
Interface
Lead Free
Length
Lifecycle Status
Max Input Voltage
Max Operating Temperature
Max Output Current
Max Supply Voltage
Min Input Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Channels
Number of Circuits
Number of Outputs
Number of Pins
Number of Terminals
Operating Supply Voltage
Output Configuration
Output Current
Radiation Hardening
REACH SVHC
Resistance
RoHS
Schedule B
Terminal Pitch
Turn-Off Delay Time
Turn-On Delay Time
Width
Description
MSOP
Compliant
Over Temperature, Reverse Current
950 µm
1.1 mm
On/Off
Lead Free
3 mm
Production (Last Updated: 8 months ago)
5.5 V
85 °C
2 A
5.5 V
2.7 V
-40 °C
2.7 V
Surface Mount
1
1
1
8
8
5 V
High Side
2 A
No
Yes
84 mΩ
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
650 µm
100 µs
1.5 ms
3 mm
In Stock
Quantity
MOQ : 2
Per Unit Price
₹58.69
Total Price
₹117.37
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹117.37
₹117.37
10
₹31.52
₹315.22
25
₹31.52
₹788.06
50
₹31.52
₹1576.10
100
₹21.91
₹2191.43
500
₹18.41
₹9205.93
1000
₹14.51
₹14513.59
