APT40DQ120BG
Manufacturer
Microchip
Description

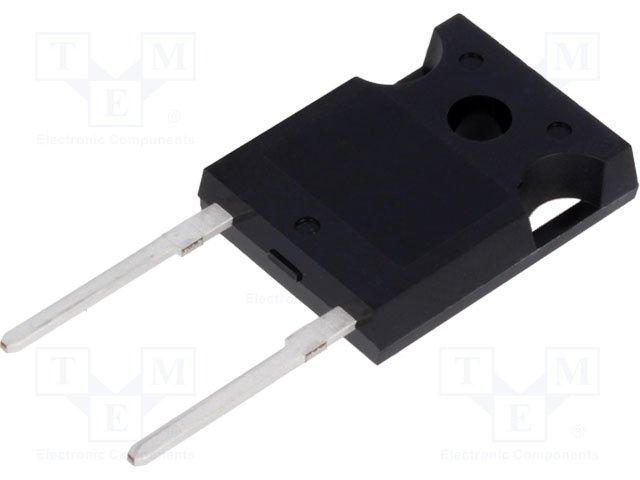

Ultrafast Soft Recovery Rectifier Diode 1200V 40A 2-Pin TO-247
Datasheet
DownloadProduct Attributes
Type
Projected EOL Date
Average Rectified Current
Capacitance
Case/Package
Current Rating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Output Current
Peak Non-Repetitive Surge Current
Peak Reverse Current
Polarity
Radiation Hardening
Reverse Recovery Time
Reverse Voltage
RoHS
Schedule B
Voltage Rating (DC)
Description
2044-04-30
40 A
36 pF
TO-247
40 A
Single
40 A
3.3 V
25.96 mm
Lead Free
Production (Last Updated: 9 months ago)
210 A
175 °C
175 °C
1.2 kV
1.2 kV
-55 °C
Through Hole
40 A
210 A
100 µA
Standard
No
350 ns
1.2 kV
Compliant
8541100080
1.2 kV
In Stock
Quantity
MOQ : 1
Per Unit Price
₹203.63
Total Price
₹203.63
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹203.63
₹203.63
10
₹203.63
₹2036.27
25
₹203.63
₹5090.67
50
₹203.61
₹10180.45
100
₹165.31
₹16531.12
