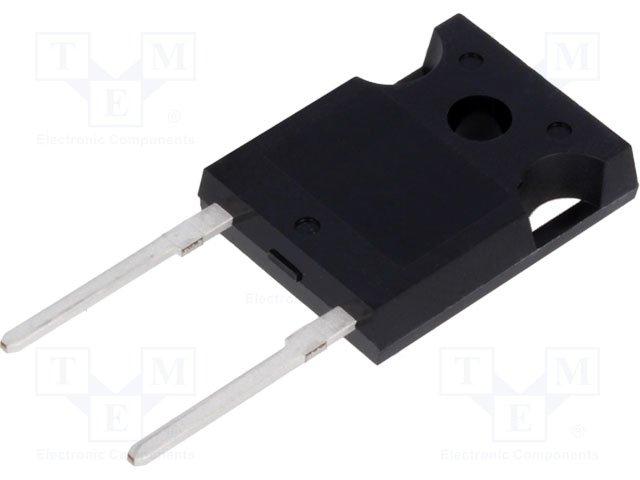

APT60S20BG
Manufacturer
Microchip
Description
Rectifier Diode, Schottky, 1 Phase, 1 Element, 75A, 200V V(RRM), Silicon, TO-247
Datasheet
DownloadProduct Attributes
Type
Projected EOL Date
Average Rectified Current
Capacitance
Case/Package
Current Rating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Output Current
Peak Non-Repetitive Surge Current
Peak Reverse Current
Polarity
Radiation Hardening
Recovery Time
Reverse Recovery Time
Reverse Voltage
Reverse Voltage (DC)
RoHS
Schedule B
Voltage Rating (DC)
Weight
Width
Description
2044-04-30
75 A
300 pF
TO-247-3
75 A
Single
75 A
830 mV
25.96 mm
Lead Free
21.46 mm
Production (Last Updated: 1 year ago)
600 A
150 °C
150 °C
200 V
200 V
600 A
-55 °C
Through Hole
75 A
600 A
1 mA
Standard
No
55 ns
55 ns
200 V
200 V
Compliant
8541100080
200 V
6.500007 g
16.26 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹365.23
Total Price
₹365.23
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹365.23
₹365.23
10
₹365.32
₹3653.19
25
₹365.30
₹9132.53
50
₹365.32
₹18265.95
100
₹297.35
₹29734.55
500
₹315.28
₹157640.32
