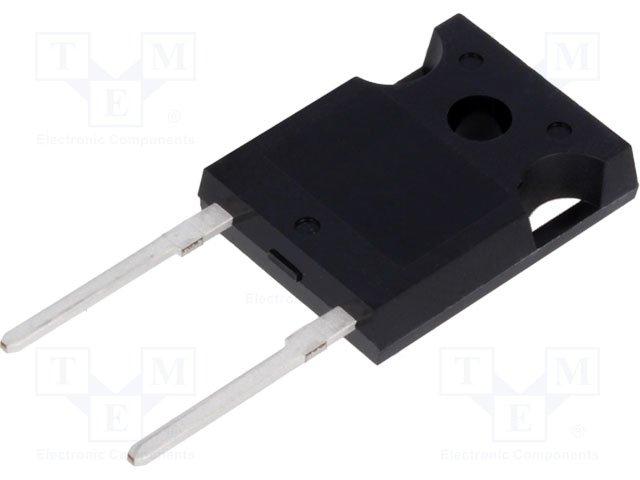

APT75DQ60BG
Manufacturer
Microchip
Description
Rectifier Diode, 1 Phase, 1 Element, 75A, 600V V(RRM), Silicon, TO-247
Datasheet
DownloadProduct Attributes
Type
Projected EOL Date
Average Rectified Current
Capacitance
Case/Package
Current Rating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Output Current
Peak Non-Repetitive Surge Current
Peak Reverse Current
Polarity
Radiation Hardening
Recovery Time
Reverse Recovery Time
Reverse Voltage
Reverse Voltage (DC)
RoHS
Schedule B
Voltage Rating (DC)
Weight
Width
Description
2044-04-30
75 A
110 pF
TO-247
75 A
Single
75 A
2.5 V
25.96 mm
Lead Free
21.46 mm
Production (Last Updated: 9 months ago)
600 A
175 °C
175 °C
600 V
600 V
600 A
-55 °C
Through Hole
75 A
600 A
25 µA
Standard
No
29 ns
31 ns
600 V
600 V
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
600 V
6.500007 g
16.26 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹244.70
Total Price
₹244.70
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹244.70
₹244.70
10
₹244.87
₹2448.72
25
₹244.87
₹6121.79
50
₹244.87
₹12243.58
100
₹198.96
₹19896.04
500
₹198.96
₹99479.32
1000
₹198.96
₹198958.65
