APT75GP120B2G
Manufacturer
Microchip
Description

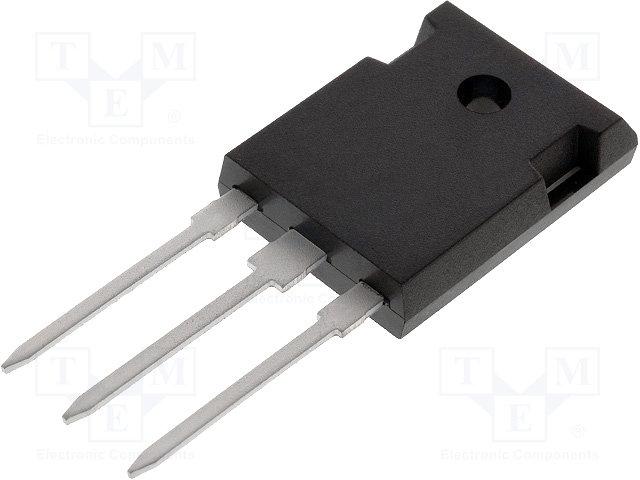

APT75GP120B2G Single 1200 V 100 A 1042 W 320 Nc Power Mos 7 Igbt - TO-247-3
Datasheet
DownloadProduct Attributes
Type
Projected EOL Date
Case/Package
Collector Emitter Breakdown Voltage
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Continuous Collector Current
Country of Assembly
Country of Fabrication
Country of Origin
Current Rating
Export Control Classification Number (ECCN) Code
Element Configuration
Height
Harmonized Tariff Schedule (HTS) Code
Lead Free
Length
Lifecycle Status
Max Collector Current
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Pins
Radiation Hardening
RoHS
Voltage Rating (DC)
Width
Description
2044-04-30
TO-247-3
1.2 kV
3.3 V
1.2 kV
100 A
Philippines
Japan
PHL
100 A
EAR99
Single
5.31 mm
8541.29.0095
Lead Free
21.46 mm
Production (Last Updated: 3 months ago)
100 A
150 °C
1.042 kW
-55 °C
Through Hole
3
No
Compliant
1.2 kV
16.26 mm
₹2498.86
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹2498.86
₹2498.86
10
₹2498.50
₹24984.99
