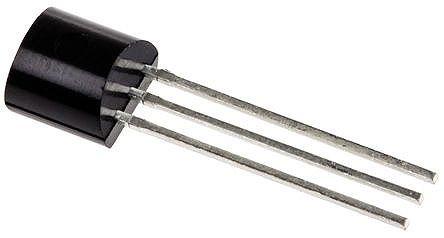

AS78L05ZTR-E1
Manufacturer
Diodes Inc.
Description
Diodes Inc, 5 V Linear Voltage Regulator, 100mA, 1-Channel, 5% 3-Pin, TO-92 AS78L05ZTR-E1
Datasheet
DownloadProduct Attributes
Type
Accuracy
Case/Package
China RoHS
Dropout Voltage
Height
Length
Lifecycle Status
Max Input Voltage
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Power Dissipation
Min Input Voltage
Min Operating Temperature
Mount
Number of Channels
Number of Circuits
Number of Outputs
Number of Pins
Number of Regulators
Number of Terminals
Output Current
Output Type
Output Voltage
Polarity
Power Dissipation
Quiescent Current
REACH SVHC
RoHS
Schedule B
Terminal Pitch
Voltage Tolerance
Width
Description
5 %
TO-92
Compliant
1.8 V
4.7 mm
4.8 mm
Production (Last Updated: 7 months ago)
30 V
125 °C
125 °C
100 mA
750 mW
7 V
-40 °C
Through Hole
1
1
1
3
1
3
100 mA
Fixed
5 V
Positive
750 mW
3 mA
Yes
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
1.27 mm
5 %
3.8 mm
In Stock
Quantity
MOQ : 4
Per Unit Price
₹25.79
Total Price
₹103.15
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹103.15
₹103.15
10
₹13.07
₹130.71
25
₹13.04
₹325.89
50
₹13.04
₹651.78
100
₹8.75
₹874.97
500
₹8.75
₹4376.64
1000
₹7.42
₹7421.26
