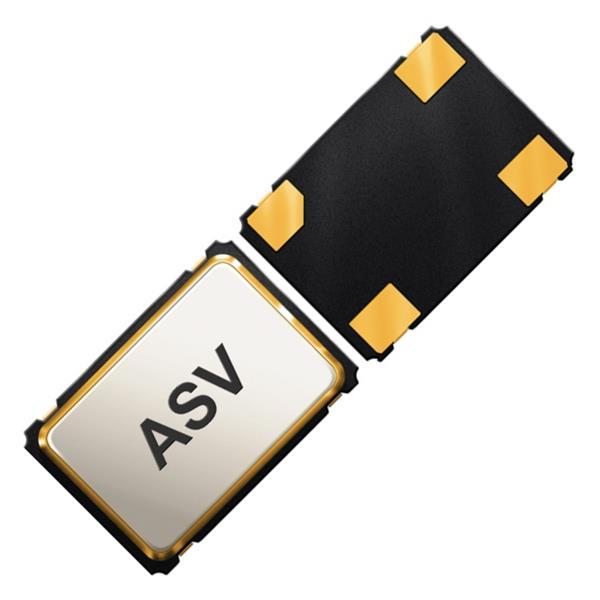

ASV-4.000MHZ-EJ-T

Manufacturer

Abracon

Description

ASV Series 4 MHz 7 x 5.08 mm 3.3 V 20 ppm SMT Crystal Clock Oscillator

Datasheet

download datasheetDownload

Product Attributes

Type

Case/Package

China RoHS

Depth

Fall Time

Frequency

Frequency Stability

Frequency Tolerance

Height

Lead Free

Length

Lifecycle Status

Load Capacitance

Max Operating Temperature

Max Supply Current

Max Supply Voltage

Min Operating Temperature

Min Supply Voltage

Mount

Number of Pins

Number of Terminals

Operating Supply Voltage

Packaging

Radiation Hardening

REACH SVHC

Rise Time

RoHS

Schedule B

Termination

Width

Description

SMD/SMT

Compliant

5.08 mm

5 ns

4 MHz

20 ppm

0.002 %

1.8034 mm

Lead Free

7 mm

Production (Last Updated: 7 months ago)

15 pF

70 °C

10 mA

3.63 V

-20 °C

2.97 V

Surface Mount

4

4

3.3 V

Tape & Reel (TR)

No

Yes

5 ns

Compliant

8541600025, 8541600025|8541600025, 8541600025|8541600025|8541600025, 8541600025|8541600025|8541600025|8541600025

SMD/SMT

5.08 mm

In Stock

Quantity

MOQ : 1

decrement quantity
increment quantity

Per Unit Price

₹144.94

Total Price

₹144.94

delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

₹144.94

₹144.94

10

₹117.29

₹1172.86

25

₹117.34

₹2933.47

50

₹117.23

₹5861.61

100

₹112.38

₹11237.71

500

₹101.88

₹50940.49

1000

₹97.67

₹97668.84
