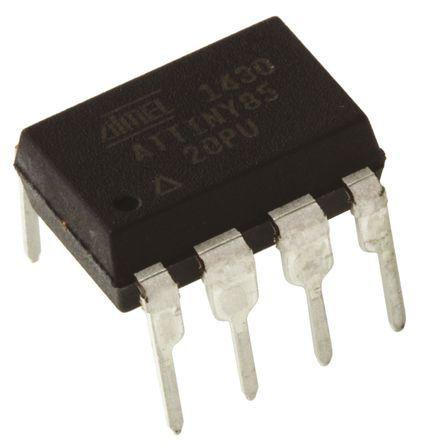

ATTINY85-20PU

Manufacturer

Microchip

Description

MCU 8-bit AVR RISC 8KB Flash 3.3V/5V 8-Pin PDIP W Tube / IC MCU 8BIT 8KB FLASH 8DIP

Datasheet

download datasheetDownload

Product Attributes

Type

Access Time

Case/Package

Contact Plating

Core Architecture

Data Bus Width

Frequency

Height

Interface

Lead Free

Length

Lifecycle Status

Max Frequency

Max Operating Temperature

Max Supply Voltage

Memory Size

Memory Type

Min Operating Temperature

Min Supply Voltage

Mount

Number of ADC Channels

Number of I2C Channels

Number of I/Os

Number of Pins

Number of Programmable I/O

Number of PWM Channels

Number of SPI Channels

Number of Timers/Counters

Number of UART Channels

Oscillator Type

Peripherals

Radiation Hardening

RAM Size

REACH SVHC

RoHS

Schedule B

Termination

Watchdog Timer

Width

Description

20 µs

PDIP

Tin

AVR

8 b

20 MHz

4.953 mm

SPI

Lead Free

10.16 mm

Production (Last Updated: 4 years ago)

20 MHz

85 °C

5.5 V

8 kB

FLASH

-40 °C

2.7 V

Through Hole

4

1

6

8

6

6

1

2

1

Internal

Brown-out Detect/Reset, POR, PWM, WDT

No

512 B

No SVHC

Compliant

8542310000, 8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|85

Through Hole

Yes

7.112 mm
