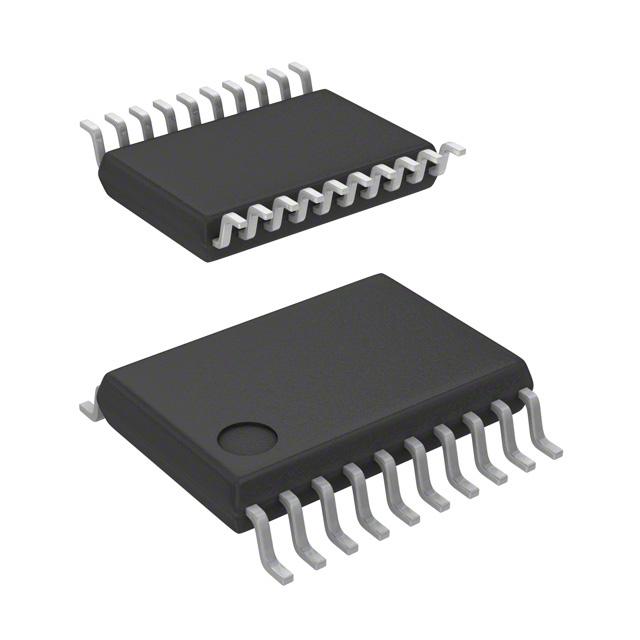

AZ75232GSTR-E1
Manufacturer
Diodes Inc.
Description
Line Transceiver, 3 Func, 3 Driver, 5 Rcvr, PDSO20
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Data Rate
Dual Supply Voltage
ESD Protection
Height - Seated (Max)
Length
Lifecycle Status
Logic Function
Low Level Output Current
Max Dual Supply Voltage
Max Operating Temperature
Max Supply Current
Max Supply Voltage
Min Dual Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Circuits
Number of Receivers
Number of Terminals
Number of Transmitters
Operating Supply Voltage
Packaging
Propagation Delay
REACH SVHC
Receiver Hysteresis
RoHS
Simplex/Duplex
Terminal Pitch
Width
Description
LSSOP
Compliant
120 kbps
9 V
No
1.69 mm
7.2 mm
Production (Last Updated: 9 months ago)
Receiver
10 mA
15 V
85 °C
30 mA
15 V
7.5 V
-40 °C
7.5 V
Surface Mount
3
5
20
3
9 V
Tape & Reel (TR)
250 ns
Yes
500 mV
Compliant
Full Duplex
650 µm
5.3 mm
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
