B2S-E3/80
Manufacturer
Vishay
Description

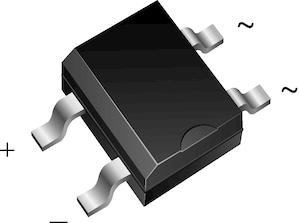

B2S Series 200 V 0.5 A Single Phase Mini Bridge Rectifier Surface Mount-TO-269AA
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
China RoHS
Contact Plating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Max Surge Current
Min Breakdown Voltage
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
REACH SVHC
Reverse Standoff Voltage
RoHS
Width
Description
500 mA
Non-Compliant
Tin
Single
500 mA
1 V
2.7 mm
Lead Free
4.95 mm
Production (Last Updated: 8 months ago)
30 A
150 °C
500 mA
200 V
5 µA
30 A
200 V
-55 °C
Surface Mount
4
4
4
Tape and Reel
30 A
5 µA
No
Yes
200 V
Compliant
4.1 mm
In Stock
Quantity
MOQ : 2
Per Unit Price
₹69.36
Total Price
₹138.72
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹138.72
₹138.72
10
₹46.24
₹462.38
25
₹46.24
₹1155.96
50
₹46.24
₹2311.92
100
₹31.78
₹3178.00
500
₹31.78
₹15889.11
1000
₹23.02
₹23024.94
