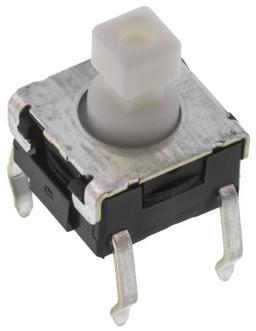

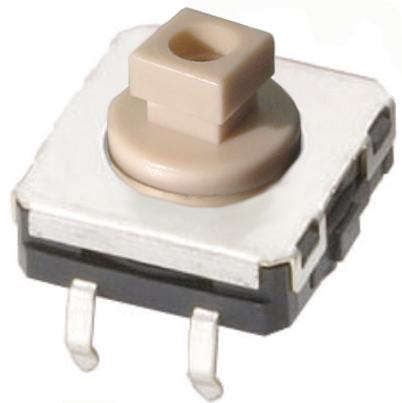

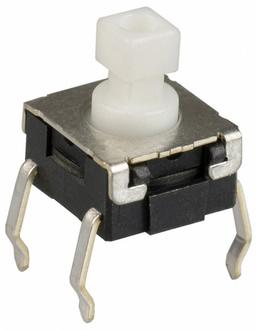

B3W-1050
Manufacturer
Omron
Description
Tactile Switch 24Vdc 50mA/24Vdc SPST NO Circuit Configuration Round Projected Button White
Datasheet
DownloadProduct Attributes
Type
Actuator Length
Ambient Temperature Range High
Color
Contact Current Rating
Contact Material
Contact Plating
Contact Resistance
Current Rating
Depth
Electrical Life
Height
Illumination Type
Insulation Resistance
Length
Life (Cycles)
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (DC)
Mechanical Life
Min Operating Temperature
Mount
Number of Poles
Number of Positions
Operating Force
Orientation
Radiation Hardening
Ratings
REACH SVHC
RoHS
Sealable
Switch Function
Switch Travel
Termination
Throw Configuration
Voltage Rating (DC)
Weight
Width
Description
3.6576 mm
70 °C
White
50 mA
Silver
Silver
100 mΩ
50 mA
7.7 mm
1 Mcycles
3.4 mm
Illuminated, Non-Illuminated
100 MΩ
6.6 mm
1 Mcycles
Production (Last Updated: 8 months ago)
50 mA
70 °C
24 V
1 Mcycles
-25 °C
Through Hole
1
1
1.57 N
Straight
No
Dust Tight, IP67, Waterproof
Yes
Compliant
IP67
Off-Mom
250 µm
PC Pins
SPST
24 V
300 mg
6 mm
In Stock
Quantity
MOQ : 2
Per Unit Price
₹63.13
Total Price
₹126.27
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹126.27
₹126.27
10
₹47.48
₹474.83
25
₹47.47
₹1186.64
50
₹47.47
₹2373.28
100
₹40.53
₹4052.97
500
₹40.53
₹20264.87
1000
₹36.90
₹36903.58
