B78148E1333J000
Manufacturer
TDK
Description

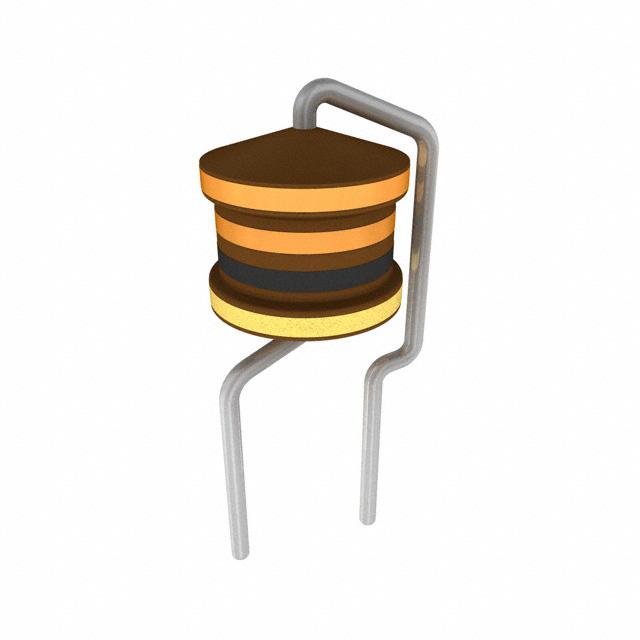

TDK - B78148E1333J000 - RF Choke, B78148E BC+ Series, 33 H, 1.05 A, 0.55 ohm, 5%, 9 MHz
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Saturation Current
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Ferrite
33 µH
±5%
1.05 A
1A
Unshielded
550mOhm Max
50 @ 796kHz
9MHz
-55°C ~ 125°C
100 kHz
Through Hole
Radial
0.157" Dia (4.00mm)
0.453" (11.50mm)
₹39.34
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹32.48
₹324.82
25
₹30.01
₹750.30
50
₹28.31
₹1415.51
100
₹26.71
₹2670.89
500
₹23.29
₹11645.20
1000
₹24.61
₹24612.12
