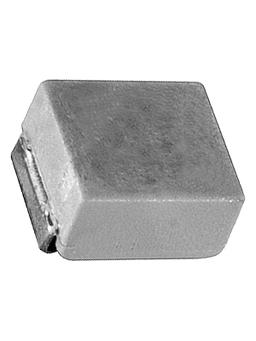

B82422A1103K100
Manufacturer
EPCOS
Description
Inductor Chip Molded Wirewound 10uH 10% 1MHz 27Q-Factor Ferrite 180mA 1.6Ohm DCR 1210 Automotive Blister T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Contact Plating
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Lead Free
Lifecycle Status
Max DC Current
Max Length
Max Operating Temperature
Max Width
Military Standard
Min Operating Temperature
Mount
Number of Pins
Q Factor
Radiation Hardening
Ratings
REACH SVHC
Resistance
RMS Current (Irms)
RoHS
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Weight
Description
1210
1210
3225
Wirewound
Tin
Ferrite
180 mA
180 mA
1.6 Ω
2.8 mm
2.1 mm
2.1082 mm
10 µH
10 %
Lead Free
Production (Last Updated: 2 years ago)
180 mA
3.5 mm
125 °C
2.8 mm
Not
-55 °C
Surface Mount
2
27
No
AEC-Q200
No
1.6 Ω
180 mA
Compliant
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
25 MHz
1.6 Ω
Unshielded
SMD/SMT
1 MHz
10 %
50.008559 mg
₹37.21
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹30.74
₹307.44
25
₹30.74
₹768.60
50
₹26.09
₹1304.43
100
₹26.01
₹2601.34
500
₹20.36
₹10177.50
1000
₹18.69
₹18687.74
