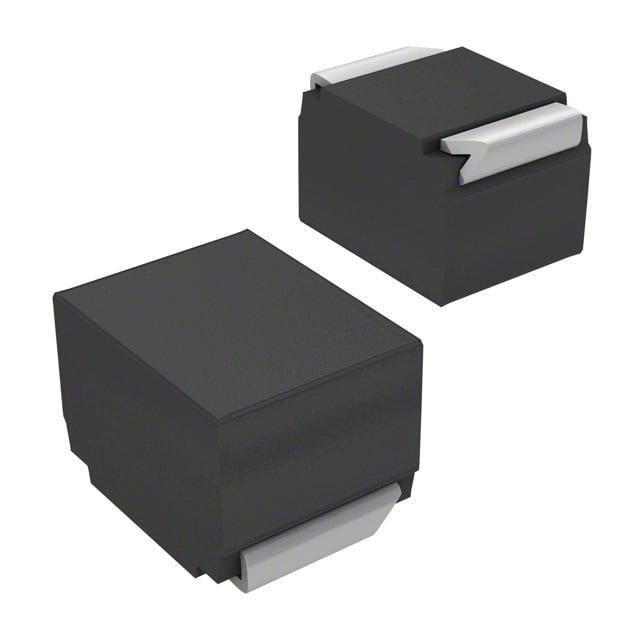

B82422A1563K100
Manufacturer
TDK
Description
TDK - B82422A1563K100 - Wirewound Inductor, AEC-Q200, 56 H, 6.75 ohm, 9 MHz, 85 mA, 1210 [3225 Metric]
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Ratings
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Ferrite
56 µH
±10%
85 mA
Unshielded
6.75Ohm Max
27 @ 2.52MHz
9MHz
AEC-Q200
-55°C ~ 125°C
100 kHz
Surface Mount
2-SMD, J-Lead
1210 (3225 Metric)
0.126" L x 0.098" W (3.20mm x 2.50mm)
0.083" (2.10mm)
₹49.10
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹37.43
₹374.31
25
₹37.43
₹935.79
50
₹35.32
₹1765.95
100
₹33.31
₹3330.60
500
₹29.05
₹14523.80
1000
₹27.39
₹27387.78
Product Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Ratings
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Ferrite
56 µH
±10%
85 mA
Unshielded
6.75Ohm Max
27 @ 2.52MHz
9MHz
AEC-Q200
-55°C ~ 125°C
100 kHz
Surface Mount
2-SMD, J-Lead
1210 (3225 Metric)
0.126" L x 0.098" W (3.20mm x 2.50mm)
0.083" (2.10mm)
