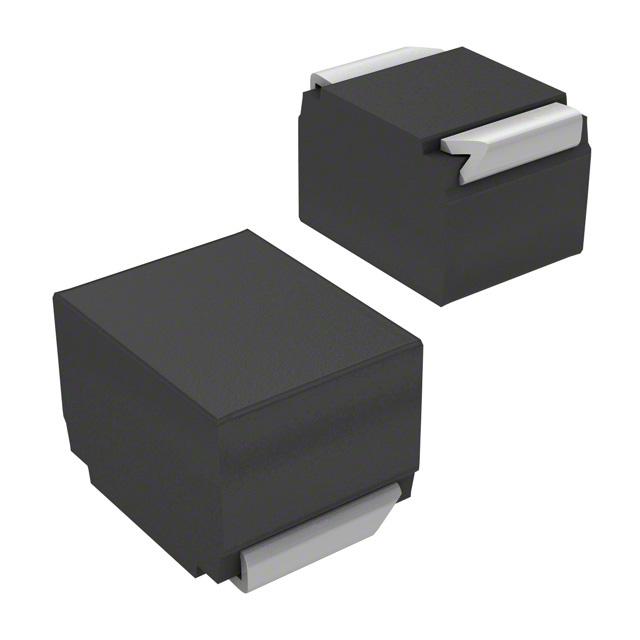

B82422H1473K000
Manufacturer
TDK
Description
TDK - B82422H1473K000 - Wirewound Inductor, 47 H, 2.1 ohm, 12 MHz, 230 mA, 1210 [3225 Metric], B82422H SIMID Series
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Ratings
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Ferrite
47 µH
±10%
230 mA
Unshielded
2.1Ohm Max
15 @ 2.52MHz
12MHz
AEC-Q200
-55°C ~ 150°C
2.52 MHz
Surface Mount
2-SMD, J-Lead
1210 (3225 Metric)
0.126" L x 0.098" W (3.20mm x 2.50mm)
0.094" (2.40mm)
₹49.71
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹40.41
₹404.06
25
₹35.30
₹882.43
50
₹35.14
₹1756.87
100
₹33.27
₹3326.97
500
₹28.92
₹14460.45
1000
₹27.28
₹27280.10
Product Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Ratings
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Ferrite
47 µH
±10%
230 mA
Unshielded
2.1Ohm Max
15 @ 2.52MHz
12MHz
AEC-Q200
-55°C ~ 150°C
2.52 MHz
Surface Mount
2-SMD, J-Lead
1210 (3225 Metric)
0.126" L x 0.098" W (3.20mm x 2.50mm)
0.094" (2.40mm)
