BAS3010B03WE6327HTSA1
Manufacturer
Infineon
Description

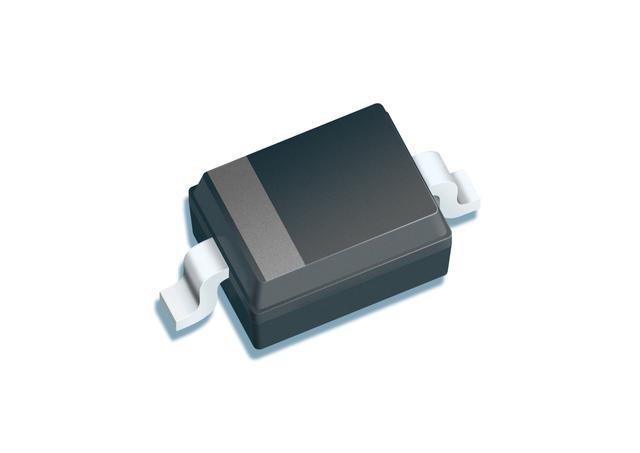

BAS3010B Series 30 V 10 A SMT Medium Power AF Schottky Diode - SOD-323
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Capacitance
Case/Package
Current Rating
Element Configuration
Forward Current
Forward Voltage
Halogen Free
Height
Lead Free
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Pins
Output Current
Package Quantity
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
REACH SVHC
Reverse Voltage
RoHS
Schedule B
Voltage Rating (DC)
Width
Description
1 A
40 pF
SOD
1 A
Single
1 A
550 mV
Not Halogen Free
900 µm
Lead Free
1.25 mm
Production (Last Updated: 4 years ago)
10 A
125 °C
30 V
30 V
-65 °C
Surface Mount
2
1 A
3000
Tape & Reel
10 A
20 µA
No
No SVHC
30 V
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
30 V
1.7 mm
In Stock
Quantity
MOQ : 3
Per Unit Price
₹37.35
Total Price
₹112.04
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹112.04
₹112.04
10
₹23.30
₹232.97
25
₹23.35
₹583.76
50
₹23.35
₹1167.52
100
₹17.50
₹1750.03
500
₹15.29
₹7643.56
1000
₹10.15
₹10147.52
