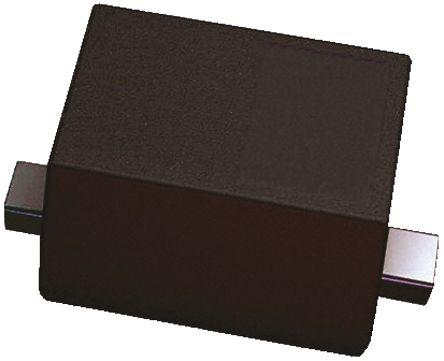

BAS521-7
Manufacturer
Diodes Inc.
Description
Rectifier Diode Small Signal Switching 300V 0.25A 50ns 2-Pin SOD-523 T/R
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
China RoHS
Contact Plating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Output Current
Max Power Dissipation
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Max Surge Current
Min Breakdown Voltage
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Peak Non-Repetitive Surge Current
Peak Reverse Current
Power Dissipation
Power Rating
Radiation Hardening
REACH SVHC
Recovery Time
Reverse Recovery Time
Reverse Standoff Voltage
RoHS
Schedule B
Weight
Width
Description
250 mA
Compliant
Tin
Single
250 mA
1.1 V
650 µm
Lead Free
1.3 mm
Production (Last Updated: 9 months ago)
4.5 A
150 °C
250 mA
325 mW
300 V
300 V
1 A
300 V
-65 °C
Surface Mount
1
2
2
4.5 A
150 nA
325 mW
325 mW
No
Yes
50 ns
50 ns
250 V
Compliant
8541100070, 8541100070|8541100070|8541100070|8541100070|8541100070
992.233309 µg
900 µm
In Stock
Quantity
MOQ : 7
Minimum Qty : 7
Per Unit Price
₹15.19
Total Price
₹106.36
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹111.04
₹111.04
10
₹10.23
₹102.28
25
₹8.85
₹221.21
50
₹8.87
₹443.29
100
₹6.00
₹600.27
500
₹5.34
₹2669.65
1000
₹4.68
₹4675.90
