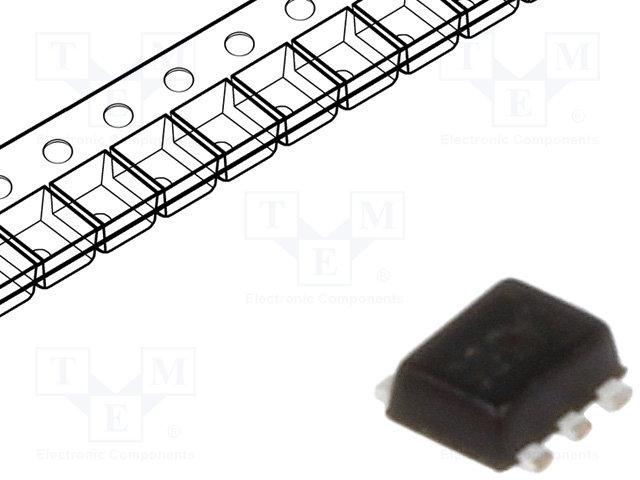

BAT40V-7
Manufacturer
Diodes Inc.
Description
Rectifier Diode Schottky 40V 0.2A 5ns 6-Pin SOT-563 T/R / DIODE ARRAY SCHOTTKY 40V SOT563
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
Contact Plating
Forward Current
Forward Voltage
Height
Length
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Natural Thermal Resistance
Number of Pins
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Power Rating
Radiation Hardening
Reverse Recovery Time
RoHS
Weight
Width
Description
200 mA
SOT-563
Tin
200 mA
1 V
600 µm
1.6 mm
750 mA
125 °C
40 V
40 V
-65 °C
Surface Mount
833 °C/W
6
Tape & Reel (TR)
750 mA
500 nA
150 mW
No
5 ns
Compliant
3.005049 mg
1.2 mm
In Stock
Quantity
MOQ : 6
Per Unit Price
₹19.56
Total Price
₹117.37
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹117.37
₹117.37
10
₹12.87
₹128.72
25
₹12.87
₹321.80
50
₹12.87
₹643.61
100
₹8.68
₹867.77
500
₹7.73
₹3863.57
1000
₹6.37
₹6374.68
