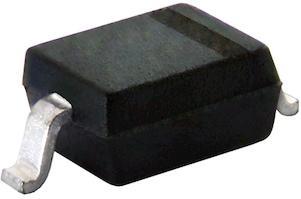

BAT42WS-E3-08
Manufacturer
Vishay
Description
Rectifier Diode, Schottky, 1 Phase, 1 Element, 0.2A, 30V V(RRM), Silicon
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Capacitance
Case/Package
China RoHS
Contact Plating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Power Dissipation
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Peak Non-Repetitive Surge Current
Peak Reverse Current
REACH SVHC
Reverse Recovery Time
Reverse Standoff Voltage
Reverse Voltage
RoHS
Weight
Description
200 mA
7 pF
SOD-323-2
Compliant
Tin
Single
200 mA
400 mV
1.15 mm
Lead Free
Production (Last Updated: 9 months ago)
4 A
125 °C
125 °C
200 mA
150 mW
30 V
30 V
-55 °C
Surface Mount
1
2
2
4 A
500 nA
Yes
5 ns
30 V
30 V
Compliant
4.309128 mg
In Stock
Quantity
MOQ : 6
Minimum Qty : 6
Per Unit Price
₹18.82
Total Price
₹112.92
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹111.16
₹111.16
10
₹13.06
₹130.57
25
₹13.02
₹325.53
50
₹13.02
₹651.06
100
₹9.59
₹958.95
500
₹7.72
₹3858.74
1000
₹6.46
₹6463.00
