BAT43XV2
Manufacturer
onsemi
Description

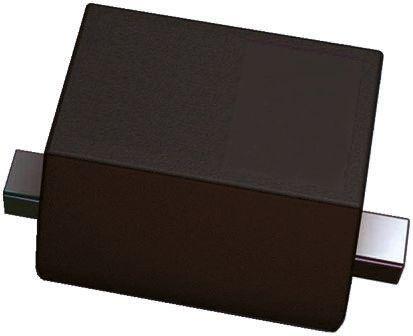

BAT43XV2 Series 30 V 200 mA Surface Mount Schottky Barrier Diode - SOD-523F
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Capacitance
Contact Plating
Element Configuration
Forward Current
Forward Voltage
Height
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Pins
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
Recovery Time
Reverse Recovery Time
Reverse Voltage
RoHS
Schedule B
Weight
Width
Description
200 mA
7 pF
Tin
Single
200 mA
1 V
700 µm
1.3 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
4 A
125 °C
125 °C
200 mW
30 V
500 nA
30 V
4 A
-65 °C
Surface Mount
2
4 A
500 nA
No
5 ns
5 ns
30 V
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
10 mg
900 µm
In Stock
Quantity
MOQ : 7
Minimum Qty : 7
Per Unit Price
₹15.82
Total Price
₹110.72
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹110.72
₹110.72
10
₹10.72
₹107.20
25
₹10.76
₹268.88
50
₹10.76
₹537.76
100
₹5.13
₹513.38
500
₹3.86
₹1931.15
1000
₹3.80
₹3795.11
