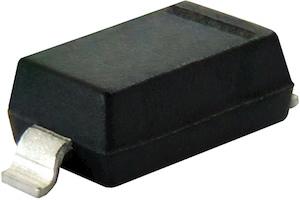

BAT46W-E3-08
Manufacturer
Vishay
Description
Rectifier Diode, Schottky, 1 Phase, 1 Element, 0.15A, 100V V(RRM), Silicon
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Capacitance
Contact Plating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Pins
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
REACH SVHC
Reverse Voltage
RoHS
Schedule B
Weight
Width
Description
150 mA
10 pF
Tin
Single
150 mA
1 V
1.35 mm
Lead Free
2.85 mm
750 mA
125 °C
125 °C
150 mW
100 V
100 V
-55 °C
Surface Mount
2
750 mA
5 µA
No
Unknown
100 V
Compliant
8541100070, 8541100070|8541100070|8541100070|8541100070|8541100070
10.290877 mg
1.7 mm
In Stock
Quantity
MOQ : 5
Per Unit Price
₹22.23
Total Price
₹111.15
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹111.15
₹111.15
10
₹14.68
₹146.80
25
₹14.68
₹367.01
50
₹14.68
₹734.02
100
₹7.59
₹758.63
500
₹6.31
₹3156.50
1000
₹5.04
₹5039.70
