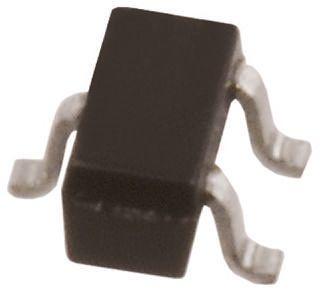

BAT54AT-7-F
Manufacturer
Diodes Inc.
Description
Schottky Diode Sot523 T&r 3K Rohs Compliant: Yes |Diodes Inc. BAT54AT-7-F
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Capacitance
Case/Package
China RoHS
Current Rating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Output Current
Max Power Dissipation
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Peak Non-Repetitive Surge Current
Peak Reverse Current
Power Dissipation
Power Rating
Radiation Hardening
REACH SVHC
Reverse Recovery Time
Reverse Standoff Voltage
RoHS
Schedule B
Termination
Voltage Rating (DC)
Weight
Width
Description
200 mA
10 pF
SOT-523
Compliant
200 mA
Common Anode
200 mA
240 mV
750 µm
Lead Free
1.6 mm
Production (Last Updated: 7 months ago)
600 mA
125 °C
200 mA
150 mW
30 V
30 V
-65 °C
Surface Mount
2
3
3
600 mA
2 µA
150 mW
150 mW
No
Yes
5 ns
30 V
Compliant
8541100070, 8541100070|8541100070|8541100070|8541100070|8541100070
SMD/SMT
30 V
2.012816 mg
800 µm
In Stock
Quantity
MOQ : 4
Minimum Qty : 4
Per Unit Price
₹25.56
Total Price
₹102.23
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹102.23
₹102.23
10
₹16.92
₹169.21
25
₹16.87
₹421.70
50
₹16.89
₹844.28
100
₹8.77
₹876.89
500
₹8.77
₹4385.35
1000
₹7.64
₹7638.23
