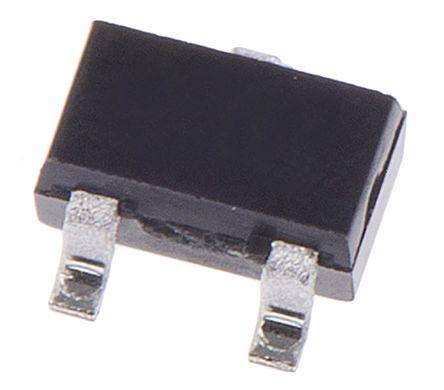

BAT54AW-7-F
Manufacturer
Diodes Inc.
Description
Rectifier Diode Schottky 30V 0.2A 5ns 3-Pin SOT-323 T/R / DIODE ARRAY SCHOTTKY 30V SOT323
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Capacitance
Case/Package
China RoHS
Current Rating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Output Current
Max Power Dissipation
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Power Dissipation
Power Rating
Radiation Hardening
REACH SVHC
Reverse Recovery Time
Reverse Standoff Voltage
RoHS
Schedule B
Termination
Voltage Rating (DC)
Weight
Width
Description
200 mA
10 pF
SOT-323
Compliant
200 mA
Common Anode
200 mA
240 mV
1 mm
Lead Free
2.2 mm
Production (Last Updated: 7 months ago)
600 mA
125 °C
200 mA
200 mW
30 V
30 V
-65 °C
Surface Mount
2
3
3
Cut Tape
600 mA
2 µA
200 mW
200 mW
No
Yes
5 ns
30 V
Compliant
8541100070, 8541100070|8541100070|8541100070|8541100070|8541100070
SMD/SMT
30 V
6.010099 mg
1.35 mm
In Stock
Quantity
MOQ : 6
Per Unit Price
₹17.78
Total Price
₹106.70
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹106.70
₹106.70
10
₹10.95
₹109.55
25
₹9.98
₹249.42
50
₹9.99
₹499.73
100
₹5.14
₹513.96
500
₹5.14
₹2568.90
1000
₹4.66
₹4662.08
