BAV21WS-TP
Manufacturer
MCC
Description

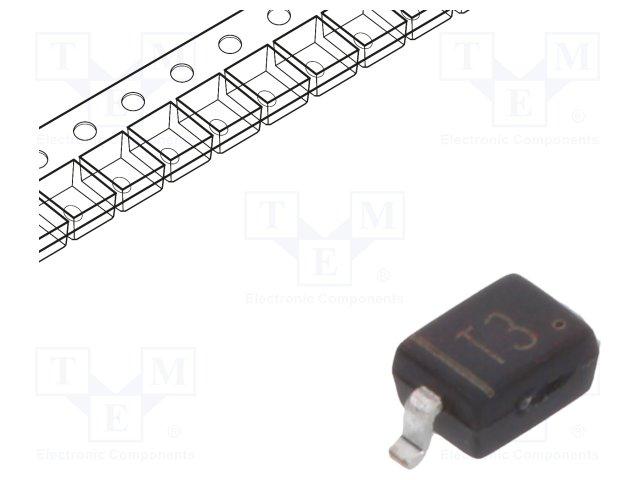

Rectifier Diode Small Signal Switching 250V 0.4A 50ns 2-Pin SOD-323 T/R
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
China RoHS
Current Rating
Element Configuration
Forward Current
Forward Voltage
Lead Free
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Output Current
Max Power Dissipation
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Output Current
Packaging
Peak Reverse Current
Polarity
Power Dissipation
REACH SVHC
Recovery Time
Reverse Recovery Time
Reverse Standoff Voltage
RoHS
Schedule B
Voltage Rating (DC)
Description
200 mA
SOD-323-2
Compliant
200 mA
Single
250 mA
1.25 V
Lead Free
Production (Last Updated: 9 months ago)
9 A
150 °C
200 mA
250 mW
250 V
15 µA
200 V
625 mA
-65 °C
Surface Mount
1
2
2
200 mA
Cut Tape
100 nA
Standard
250 mW
Yes
50 ns
50 ns
200 V
Compliant
8541100070, 8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
250 V
In Stock
Quantity
MOQ : 7
Minimum Qty : 7
Per Unit Price
₹15.97
Total Price
₹111.78
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹110.91
₹110.91
10
₹10.30
₹102.98
25
₹10.26
₹256.58
50
₹10.26
₹513.16
100
₹6.02
₹602.06
500
₹4.78
₹2388.86
1000
₹3.67
₹3673.07
