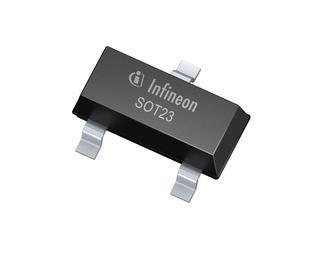

BAW156E6327HTSA1
Manufacturer
Infineon
Description
BAW156 Series 85 V 200 mA Surface Mount Silicon Low Leakage Diode - SOT-23-3
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
China RoHS
Current Rating
Element Configuration
Forward Current
Forward Voltage
Halogen Free
Height
Lead Free
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Output Current
Max Power Dissipation
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Output Current
Package Quantity
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
REACH SVHC
Reverse Recovery Time
Reverse Standoff Voltage
RoHS
Schedule B
Voltage Rating (DC)
Width
Description
200 mA
SOT
Compliant
200 mA
Common Anode
200 mA
1.1 V
Not Halogen Free
900 µm
Lead Free
2.9 mm
EOL (Last Updated: 9 months ago)
4 A
150 °C
200 mA
250 mW
85 V
80 V
-65 °C
Surface Mount
2
3
3
200 mA
3000
Tape & Reel
4.5 A
80 nA
No
Yes
1.5 µs
75 V
Compliant
8541100070|8541100070|8541100070|8541100070|8541100070
80 V
1.3 mm
₹35.38
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹17.29
₹172.94
25
₹17.35
₹433.71
50
₹17.35
₹867.42
100
₹10.81
₹1080.62
500
₹7.94
₹3970.18
1000
₹6.91
₹6913.74
