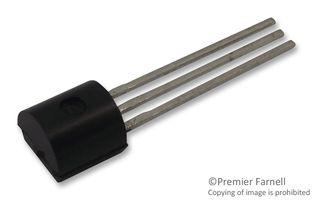

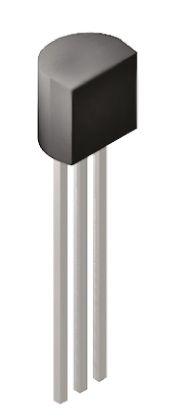

BC546BTF
Manufacturer
onsemi
Description
Small Signal Bipolar Transistor, 0.1A I(C), 65V V(BR)CEO, 1-Element, NPN, Silicon, TO-92
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Collector Base Voltage (VCBO)
Collector Emitter Breakdown Voltage
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Contact Plating
Current Rating
Element Configuration
Emitter Base Voltage (VEBO)
Frequency
Gain Bandwidth Product
Height
hFE Min
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Breakdown Voltage
Max Collector Current
Max Frequency
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Polarity
Power Dissipation
REACH SVHC
RoHS
Schedule B
Transition Frequency
Voltage Rating (DC)
Weight
Width
Description
TO-92-3
Compliant
80 V
65 V
90 mV
65 V
Tin
100 mA
Single
6 V
300 MHz
300 MHz
5.33 mm
200
Lead Free
4.58 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
65 V
100 mA
1 MHz
150 °C
150 °C
625 mW
-65 °C
Through Hole
1
3
3
NPN
500 mW
Yes
Compliant
8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080
300 MHz
65 V
240 mg
3.86 mm
In Stock
Quantity
MOQ : 5
Per Unit Price
₹22.23
Total Price
₹111.15
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹111.15
₹111.15
10
₹12.98
₹129.82
25
₹12.95
₹323.67
50
₹12.95
₹647.34
100
₹6.76
₹675.79
500
₹6.76
₹3378.07
1000
₹5.42
₹5423.23
