BF720T1G
Manufacturer
onsemi
Description

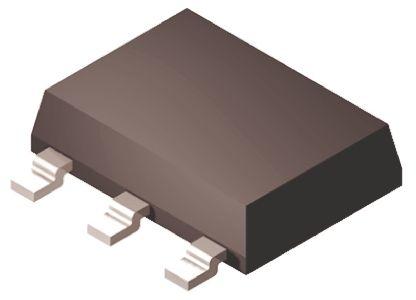

on Semi BF720T1G NPN High Voltage Bipolar Transistor, 0.1 A, 300 V SOT-223
Datasheet
DownloadProduct Attributes
Type
Case/Package
Collector Base Voltage (VCBO)
Collector Emitter Breakdown Voltage
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Contact Plating
Current Rating
Element Configuration
Emitter Base Voltage (VEBO)
Frequency
Gain Bandwidth Product
Height
hFE Min
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Breakdown Voltage
Max Collector Current
Max Frequency
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Number of Elements
Number of Pins
Packaging
Polarity
Power Dissipation
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Transition Frequency
Type
Voltage Rating (DC)
Width
Description
SOT-223-4
300 V
300 V
600 mV
300 V
Tin
100 mA
Single
5 V
60 MHz
60 MHz
1.65 mm
50
Lead Free
6.7 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
300 V
100 mA
60 MHz
150 °C
1.5 W
-65 °C
1
4
Tape and Reel
NPN
1.5 W
No
No
Compliant
8541290080, 8541290080|8541290080, 8541290080|8541290080|8541290080, 8541290080|8541290080|8541290080|8541290080
60 MHz
General Purpose
300 V
3.7 mm
₹50.78
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹32.80
₹327.96
25
₹32.80
₹819.89
50
₹32.80
₹1639.78
100
₹22.36
₹2236.30
500
₹17.54
₹8768.65
1000
₹13.79
₹13792.30
