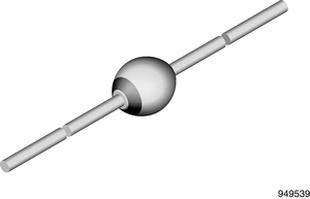

BZT03C13-TAP
Manufacturer
Vishay
Description
Zener Diode, single, Two Terminal, 13V V(Z), 8.5%, sod-57 |Vishay BZT03C13-TAP
Datasheet
DownloadProduct Attributes
Type
Body Material
China RoHS
Clamping Voltage
Composition
Contact Plating
Current
Element Configuration
ESD Protection
Impedance
Lifecycle Status
Max Breakdown Voltage
Max Operating Temperature
Max Power Dissipation
Max Reverse Leakage Current
Min Breakdown Voltage
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Number of Unidirectional Channels
Peak Pulse Current
Peak Pulse Power
Polarity
Power Dissipation
Power Line Protection
Radiation Hardening
REACH SVHC
Reference Voltage
Reverse Standoff Voltage
RoHS
Test Current
Voltage
Voltage Tolerance
Zener Voltage
Description
Glass
Non-Compliant
18.9 V
Zener
Silver, Tin
5 A
Single
No
10 Ω
Obsolete (Last Updated: 9 months ago)
14.1 V
175 °C
1.3 W
2 µA
12.4 V
-65 °C
Through Hole
1
2
2
1
15.9 A
600 W
Unidirectional
1.3 W
No
No
Yes
13 V
11 V
Compliant
50 mA
13 V
8.5 %
13 V
In Stock
Quantity
MOQ : 2
Minimum Qty : 2
Per Unit Price
₹81.60
Total Price
₹163.21
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹162.32
₹162.32
10
₹59.11
₹591.07
25
₹59.04
₹1475.92
50
₹59.05
₹2952.72
100
₹40.74
₹4074.00
500
₹40.74
₹20370.00
1000
₹28.25
₹28253.34
