BZT55C4V7-GS08
Manufacturer
Vishay
Description

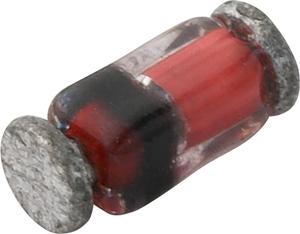

Diode Zener Single 4.7V 6% 500mW Automotive 2-Pin Quadro MELF SOD-80 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Contact Plating
Diameter
Element Configuration
ESD Protection
Forward Voltage
Impedance
Lead Free
Length
Max Operating Temperature
Max Power Dissipation
Max Reverse Leakage Current
Min Operating Temperature
Mount
Number of Pins
Packaging
Peak Reverse Current
Power Dissipation
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Termination
Test Current
Tolerance
Voltage Tolerance
Working Voltage
Zener Voltage
Description
MELF
Silver, Tin
1.6 mm
Single
No
1.5 V
80 Ω
Lead Free
3.7 mm
175 °C
500 mW
500 nA
-65 °C
Surface Mount
2
Cut Tape
500 nA
500 mW
No
Unknown
Compliant
8541100050, 8541100050|8541100050, 8541100050|8541100050|8541100050, 8541100050|8541100050|8541100050|8541100050
SMD/SMT
5 mA
5 %
6 %
4.7 V
4.7 V
In Stock
Quantity
MOQ : 8
Per Unit Price
₹14.23
Total Price
₹113.82
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹113.82
₹113.82
10
₹10.27
₹102.70
25
₹8.72
₹218.00
50
₹8.72
₹436.00
100
₹4.48
₹448.16
500
₹3.72
₹1859.18
1000
₹2.91
₹2914.71
