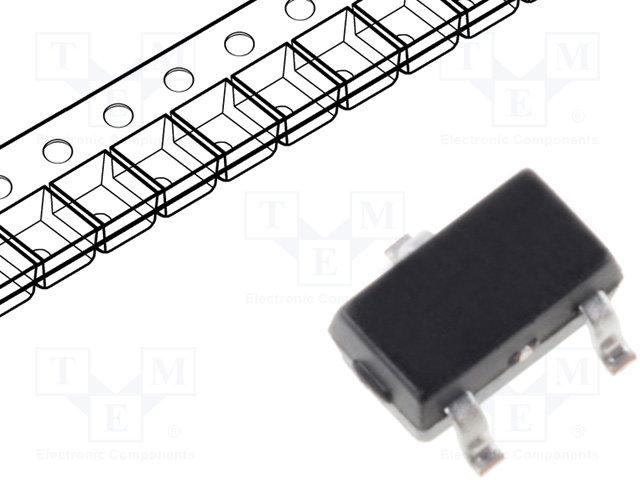

BZX84C16W-7-F
Manufacturer
Diodes Inc.
Description
Diode Zener Single 16V 6% 200mW 3-Pin SOT-323 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Contact Plating
Element Configuration
ESD Protection
Height
Impedance
Lead Free
Length
Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Max Reverse Leakage Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Output Current
Packaging
Peak Reverse Current
Polarity
Power Dissipation
Power Rating
REACH SVHC
Reference Voltage
RoHS
Termination
Test Current
Tolerance
Voltage Rating (DC)
Voltage Tolerance
Weight
Width
Zener Current
Zener Voltage
Description
SOT-323
Compliant
Tin
Single
No
1 mm
40 Ω
Lead Free
2.2 mm
Production (Last Updated: 9 months ago)
125 °C
200 mW
100 nA
-65 °C
Surface Mount
1
3
3
20 mA
Cut Tape
100 nA
Unidirectional
200 mW
200 mW
Yes
16 V
Compliant
SMD/SMT
5 mA
5.56 %
16 V
5.56 %
6.010099 mg
1.35 mm
5 mA
16 V
In Stock
Quantity
MOQ : 5
Minimum Qty : 5
Per Unit Price
₹22.23
Total Price
₹111.16
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹114.69
₹114.69
10
₹15.17
₹151.74
25
₹15.24
₹381.11
50
₹15.23
₹761.34
100
₹7.30
₹729.58
500
₹7.20
₹3597.61
1000
₹7.09
₹7090.24
