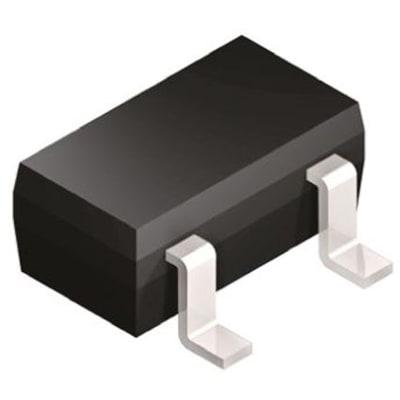

BZX84C9V1LT3G
Manufacturer
onsemi
Description
BZX84C9V1LT3G Zener Diode, 9.1V 5% 300 mW SMT 3-Pin SOT-23 | ON Semiconductor BZX84C9V1LT3G
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Element Configuration
Height
Impedance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Max Reverse Leakage Current
Min Operating Temperature
Number of Elements
Number of Pins
Number of Terminals
Packaging
Polarity
Power Dissipation
Power Rating
Radiation Hardening
REACH SVHC
Reference Voltage
RoHS
Schedule B
Test Current
Tolerance
Voltage Rating (DC)
Voltage Tolerance
Width
Zener Current
Zener Voltage
Description
SOT-23-3
Compliant
Single
1.01 mm
15 Ω
Lead Free
3.04 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
150 °C
250 mW
500 nA
-65 °C
1
3
3
Tape and Reel
Unidirectional
300 mW
225 mW
No
Yes
9.1 V
Compliant
8541100050, 8541100050|8541100050|8541100050|8541100050|8541100050
5 mA
5 %
9.1 V
6.08 %
1.4 mm
5 mA
9.1 V
In Stock
Quantity
MOQ : 9
Minimum Qty : 9
Per Unit Price
₹11.66
Total Price
₹104.98
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹103.22
₹103.22
10
₹10.75
₹107.45
25
₹7.62
₹190.56
50
₹7.62
₹381.11
100
₹3.60
₹359.94
500
₹3.28
₹1640.89
1000
₹2.86
₹2857.45
