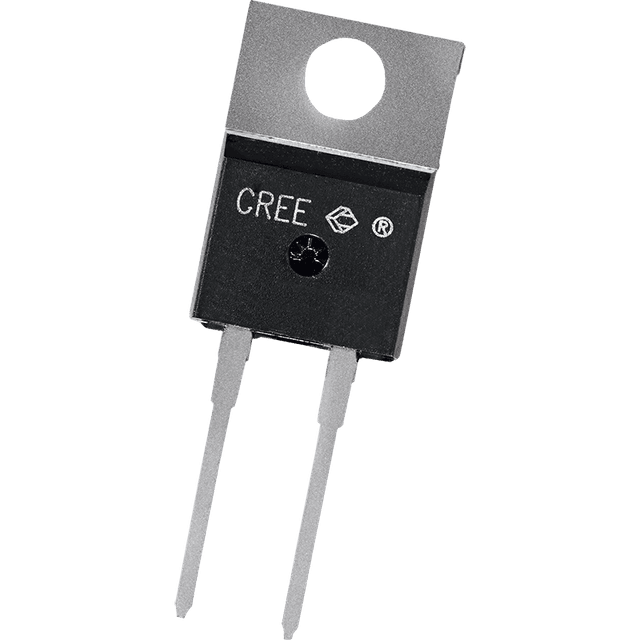

C4D20120A
Manufacturer
Wolfspeed
Description
Rectifier Diode, Schottky, 1 Phase, 1 Element, 27A, 1200V V(RRM), Silicon Carbide, TO-220AC
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Capacitance
Case/Package
Current Rating
Element Configuration
Forward Current
Forward Voltage
Height
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Current Rating
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Power Dissipation
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
REACH SVHC
Reverse Recovery Time
Reverse Standoff Voltage
Reverse Voltage
RoHS
Schedule B
Width
Description
20 A
1.5 nF
TO-220-2
20 A
Single
54.5 A
1.5 V
19.431 mm
10.41 mm
Production (Last Updated: 4 years ago)
PRODUCTION (Last Updated: 4 years ago)
20 A
110 A
175 °C
175 °C
27 A
242 W
1.2 kV
200 µA
1.2 kV
130 A
-55 °C
Through Hole
1
2
2
130 A
35 µA
No
Yes
0 s
1.2 kV
1.2 kV
Compliant
8541100040, 8541100080|8541100080
4.699 mm
₹1443.87
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹1443.87
₹1443.87
10
₹1401.96
₹14019.63
25
₹1402.00
₹35049.99
50
₹1247.31
₹62365.49
100
₹1247.31
₹124730.97
500
₹1376.78
₹688389.27
1000
₹1376.78
₹1376779.46
