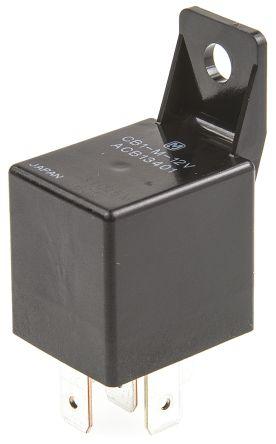

CB1-M-12V
Manufacturer
Panasonic
Description
Electromechanical Relay SPDT 40(NO)/30(NC)A 12VDC 103Ohm Bracket Mount
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Coil Current
Coil Power
Coil Resistance
Coil Type
Coil Voltage (DC)
Contact Current Rating
Contact Material
Current Rating
Depth
Electrical Life
Height
Lead Free
Length
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (DC)
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Operate Time
Packaging
Power Consumption
Radiation Hardening
REACH SVHC
Relay Type
Release Time
Response Time
RoHS
Sealable
Termination
Throw Configuration
Voltage Rating (DC)
Description
85 °C
117 mA
1.4 W
103 Ω
Non-Latching
7 V
40 A
Cadmium, Silver
40 A
22 mm
50 kcycles
25 mm
Lead Free
26 mm
Production (Last Updated: 7 months ago)
1 A
85 °C
12 V
-40 °C
Brackets, Chassis Mount, Panel
1
5
15 ms
Box
1.4 W
No
Yes
Automotive
15 ms
15 ms
Compliant
EPOXY RESIN SEALED
Quick Connect
SPDT
14 V
In Stock
Quantity
MOQ : 1
Per Unit Price
₹441.04
Total Price
₹441.04
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹441.04
₹441.04
10
₹362.62
₹3626.16
25
₹362.65
₹9066.28
50
₹347.69
₹17384.75
100
₹338.11
₹33810.94
500
₹313.17
₹156582.79
1000
₹300.67
₹300672.31
