CBT25J22K
Manufacturer
TE Connectivity
Description

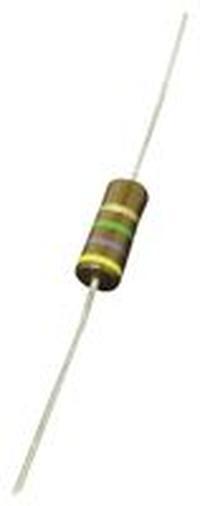

Axial Carbon Resistor 22kOhms +/-5% 0.25W -700 - +400ppm/degC | TE Connectivity CBT25J22K
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Composition
Diameter
ELV
Insulation Resistance
Lead Diameter
Lead Length
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Pins
Number of Resistors
Number of Terminals
Number of Terminations
Packaging
Power Dissipation
Power Rating
Radiation Hardening
REACH SVHC
Resistance
RoHS
Temperature Coefficient
Termination
Tolerance
Voltage Rating
Voltage Rating (AC)
Voltage Rating (DC)
Working Voltage
Description
Axial
Compliant
Carbon Composition, Power resistor
2.4 mm
Compliant
1 GΩ
600 µm
27 mm
6.3 mm
Production (Last Updated: 2 years ago)
ACTIVE (Last Updated: 2 years ago)
125 °C
250 mW
-55 °C
Axial, Through Hole
2
1
2
2
Tape & Box (TB)
250 mW
250 mW
No
Yes
22 kΩ
Compliant
400 ppm/°C
Axial
5 %
250 V
250 V
250 V
250 V
₹76.40
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹48.13
₹481.29
25
₹48.17
₹1204.14
50
₹37.70
₹1884.90
100
₹20.95
₹2095.35
500
₹20.95
₹10475.83
1000
₹15.86
₹15860.61
