CBT50J56R
Manufacturer
TE Connectivity
Description

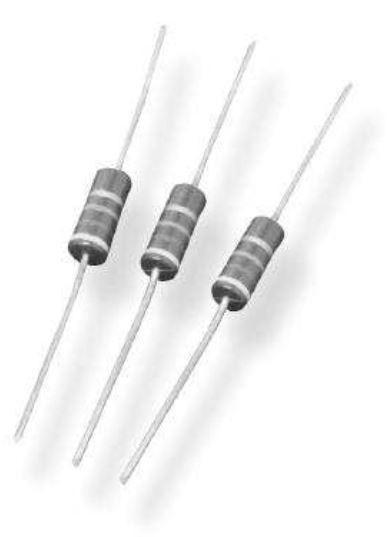

Res Carbon Composition 56 Ohm 5% 0.5W(1/2W) Conformal Coated AXL Ammo
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Composition
Diameter
ELV
Lead Diameter
Lead Length
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Resistors
Number of Terminals
Number of Terminations
Packaging
Power Dissipation
Power Rating
REACH SVHC
Resistance
RoHS
Temperature Coefficient
Tolerance
Voltage Rating
Working Voltage
Description
Axial
Compliant
Carbon Composition, Power resistor
3.6 mm
Compliant
700 µm
25 mm
9.4996 mm
Production (Last Updated: 2 years ago)
ACTIVE (Last Updated: 2 years ago)
125 °C
500 mW
-55 °C
Axial
1
2
2
Tape & Box (TB)
500 mW
500 mW
Yes
56 Ω
Compliant
200 ppm/°C
5 %
350 V
350 V
Out of Stock
Ships in 7-10 days
