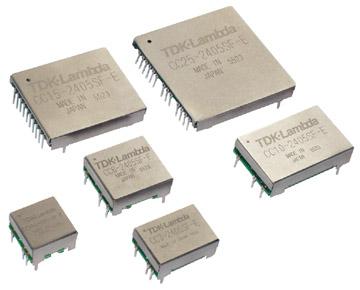

CC10-0512DF-E
Manufacturer
TDK-Lambda
Description
Module DC-DC 5VIN 2-OUT 12V/-12V 0.4A 10W 7-Pin DIP Module
Datasheet
DownloadProduct Attributes
Type
Approvals
Body Material
Case/Package
China RoHS
Current - Output 1
Current - Output 2
Depth
Efficiency
Height
Height - Seated (Max)
Isolation
Isolation Voltage
Lead Free
Length
Lifecycle Status
Max Input Voltage
Max Input Voltage (DC)
Max Operating Temperature
Max Output Current
Max Output Power
Max Output Voltage
Max Power Dissipation
Min Input Voltage
Min Input Voltage (DC)
Min Operating Temperature
Min Output Voltage
Mount
Nominal Input Voltage
Nominal Output Voltage
Number of Circuits
Number of Outputs
Number of Pins
Number of Terminals
Output Current
Output Power
Output Voltage
Power Rating
Radiation Hardening
REACH SVHC
RoHS
Terminal Pitch
Voltage - Output 1
Voltage - Output 2
Weight
Width
Description
CE, CSA, EN, IEC, UL
Metal
PDIP
Non-Compliant
400 mA
400 mA
22.6 mm
83 %
8.382 mm
8.5 mm
Isolated
500 V
Lead Free
35.56 mm
Production (Last Updated: 8 months ago)
9 V
9 V
50 °C
400 mA
9.6 W
15 V
10 W
4.5 V
4.5 V
-40 °C
11.4 V
PCB, Through Hole
5 V
12 V
1
2
7
7
400 mA
10 W
12 V
10 W
No
Yes
Compliant
5.08 mm
12 V
-12 V
10 g
22.6 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹3102.42
Total Price
₹3102.42
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹3102.42
₹3102.42
10
₹2811.56
₹28115.62
25
₹2811.47
₹70286.81
50
₹2670.68
₹133533.83
100
₹2670.69
₹267068.55
