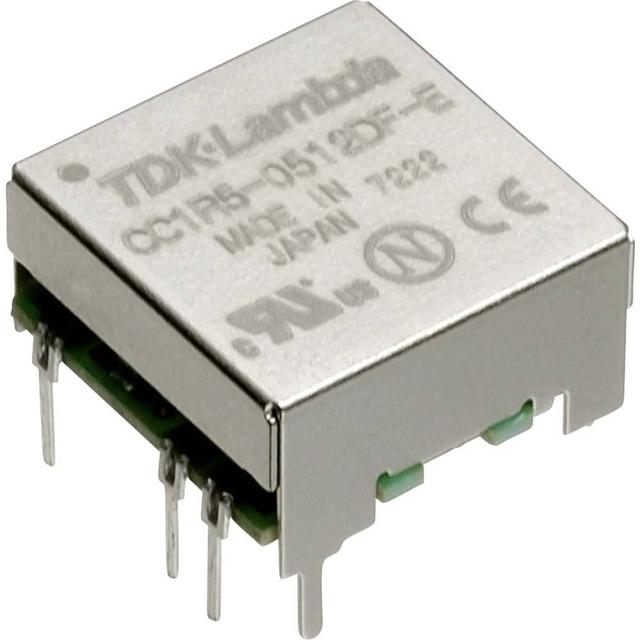

CC1R5-1203SF-E
Manufacturer
TDK-Lambda
Description
DC-DC Converters, On-board type, Output: 1.32W, 3.3V, Isolated type, Option: DIP type
Datasheet
DownloadProduct Attributes
Type
Case/Package
Current - Output 1
Depth
Height
Isolation
Isolation Voltage
Lead Free
Length
Lifecycle Status
Max Input Voltage
Max Input Voltage (DC)
Max Operating Temperature
Max Output Current
Max Output Power
Max Power Dissipation
Min Input Voltage
Min Input Voltage (DC)
Min Operating Temperature
Mount
Nominal Input Voltage
Nominal Output Voltage
Number of Outputs
Number of Pins
Operating Supply Voltage
Output Current
Output Power
Output Voltage
Power Rating
Radiation Hardening
REACH SVHC
RoHS
Voltage - Output 1
Weight
Width
Description
PDIP
400 mA
16.61 mm
8.636 mm
Isolated
500 V
Lead Free
16.51 mm
Production (Last Updated: 2 years ago)
18 V
18 V
85 °C
400 mA
1.5 W
1.5 W
9 V
9 V
-40 °C
PCB, Through Hole
12 V
3.3 V
1
7
12 V
400 mA
1.5 W
3.3 V
1.5 W
No
No
Compliant
3.3 V
3.2 g
16.51 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹1146.18
Total Price
₹1146.18
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹1146.18
₹1146.18
10
₹1021.78
₹10217.80
25
₹1021.76
₹25544.05
50
₹974.85
₹48742.39
100
₹974.84
₹97483.88
