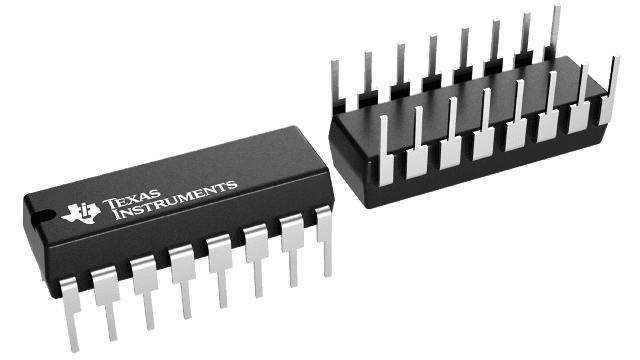

CD40109BNSR
Manufacturer
Texas Instruments
Description
CMOS Quad Low-to-High Voltage Level Shifter (20V Rating) 16-SOP -55 to 125
Product Attributes
Type
Case/Package
Contact Plating
Data Rate
Height
High Level Output Current
Lead Free
Length
Lifecycle Status
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Number of Bits
Number of Channels
Number of Inputs
Number of Outputs
Number of Pins
Output Current
Output Type
Packaging
Propagation Delay
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Thickness
Turn-On Delay Time
Weight
Width
Description
SOP
Gold
10 Mbps
0 m
-4.2 mA
Lead Free
10.3 mm
Production (Last Updated: 5 days ago)
Level Shifter, Translator
4.2 mA
ACTIVE (Last Updated: 5 days ago)
125 °C
18 V
-55 °C
3 V
4
4
4
4
16
6.8 mA
Voltage
Tape and Reel
240 ns
20 µA
No
No
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
1.95 mm
740 ns
200.686274 mg
5.3 mm
In Stock
Quantity
MOQ : 3
Per Unit Price
₹39.13
Total Price
₹117.38
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹117.38
₹117.38
10
₹27.21
₹272.10
25
₹24.22
₹605.54
50
₹24.19
₹1209.31
100
₹20.88
₹2087.84
500
₹18.34
₹9171.21
1000
₹16.96
₹16958.82
