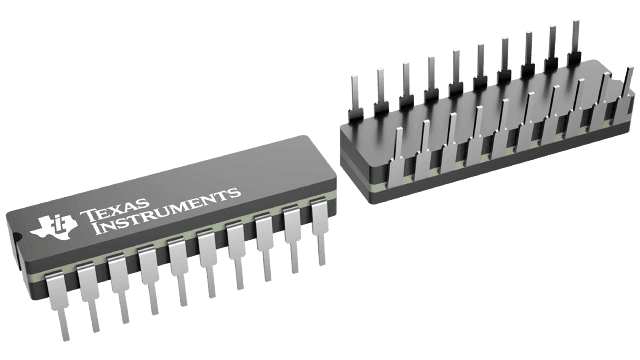

CD54HC245F
Manufacturer
Texas Instruments
Description
High Speed CMOS Logic Non-Inverting Octal-Bus Transceiver with 3-State Outputs 20-CDIP -55 to 125
Product Attributes
Type
Case/Package
Direction
Height
High Level Output Current
Lead Free
Length
Lifecycle Status
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Bits
Number of Channels
Number of Elements
Number of Pins
Polarity
Propagation Delay
Quiescent Current
Radiation Hardening
RoHS
Schedule B
Thickness
Turn-On Delay Time
Width
Description
CDIP
Bidirectional
5.08 mm
-5.2 mA
Contains Lead
24.2 mm
Production (Last Updated: 3 days ago)
Transceiver
5.2 mA
ACTIVE (Last Updated: 3 days ago)
125 °C
6 V
-55 °C
2 V
Through Hole
8
8
1
20
Non-Inverting
225 ns
8 µA
No
Non-Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
4.57 mm
225 ns
6.92 mm
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
